APEX Security: only hiding buttons is not secure

Don't just hide Buttons when only some privileged users should be able to execute processes in Oracle APEX. With some JS you can still trigger them. Additionally use the read-only functionality where possible.

In many applications, there are pages that some privileged users are allowed to edit where others are only allowed to read. It is fairly easy to implement such authorizations in Oracle APEX. We can for example hide elements from some users by setting server-side-conditions or authorization schemes. We can apply that for save or delete buttons so that unprivileged users can’t see the buttons and can’t trigger the underlying processes. Or can they?

Buttons just call apex.submit

Buttons only serve a UI purpose to make the user aware he can interact with it. After a click, most buttons execute some JavaScript code. By only hiding buttons only the UI trigger to those JS calls is missing but it is still possible to execute that JS code manually with the browser console.

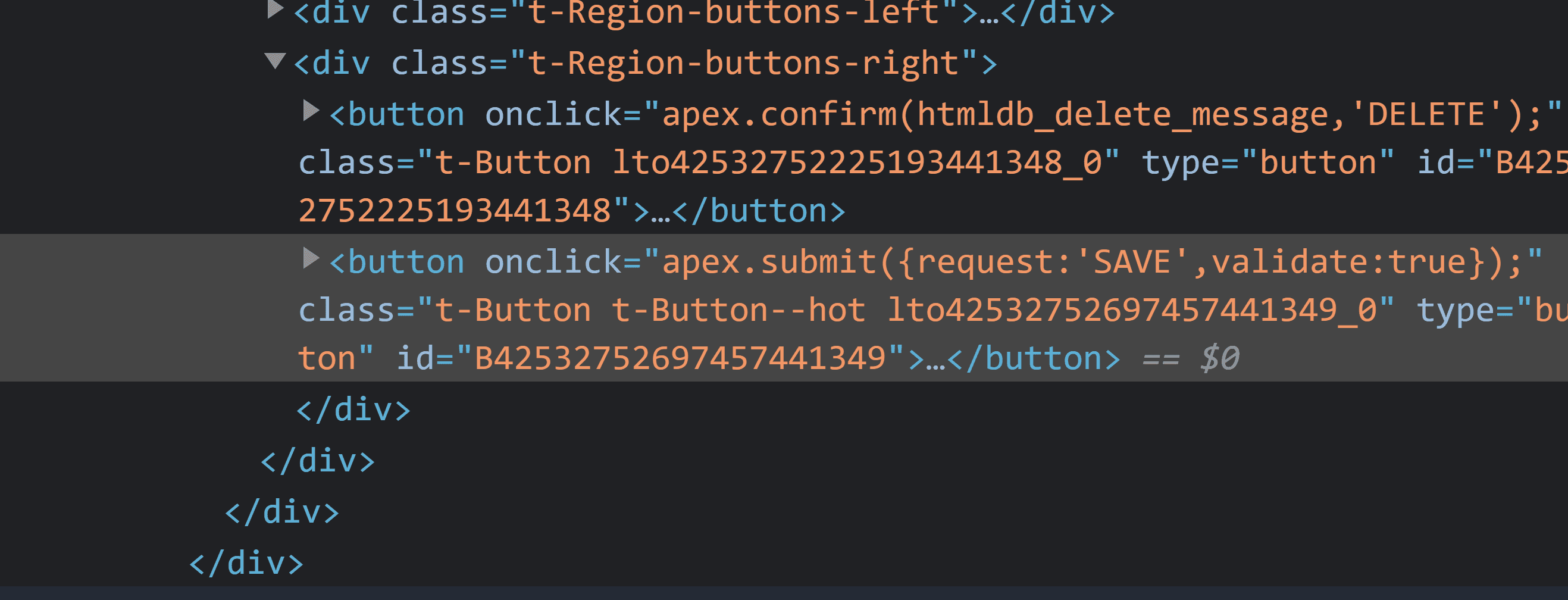

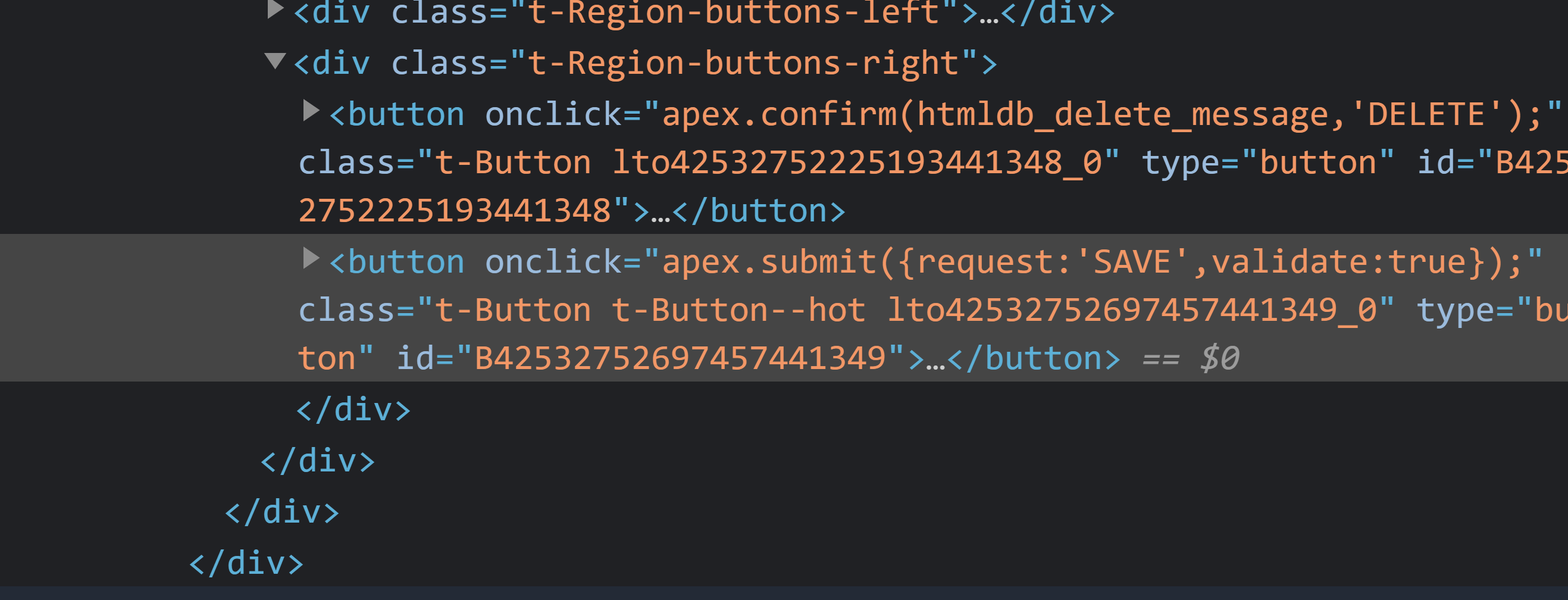

If you inspect that button in your browser dev tools on the rendered page you can see that call on the onclick attribute:

button in the dev tools which calls apex.submit

So everyone can for example put this code in the browser console and mimic a delete button:

apex.submit({ request: 'DELETE' });

apex.submit is an alias for apex.page.submit, take a look at the documentation for more information.

Buttons in APEX have a distinct name in the Page Designer which is used as a request parameter when the page is submitted. In the processes tab, we can then define which button triggers the process, meaning which request parameter will trigger it.

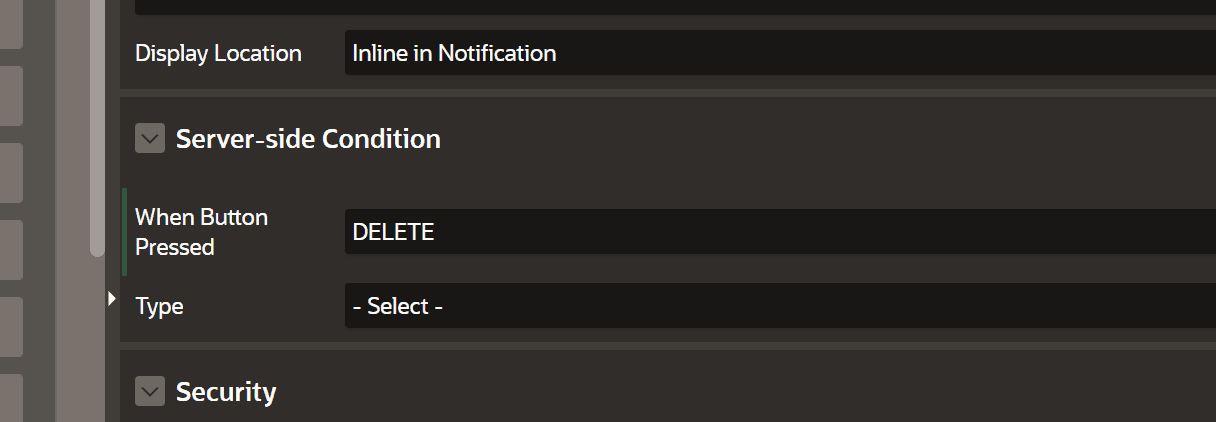

server-side-condition when button pressed on apex processes

While you can’t find out the request names of buttons when you don’t see them, I guess most developers name them accordingly. Also when we create a page via the APEX Wizard by default the buttons are named SAVE, CREATE and DELETE.

Use server-side conditions and authorization schemes on APEX processes

As stated above everyone can execute that small snippet by themselves. So hiding the button is no security measure. What we can do to only allow privileged users to trigger processes is to put server-side-conditions or authorization schemes onto them in APEX:

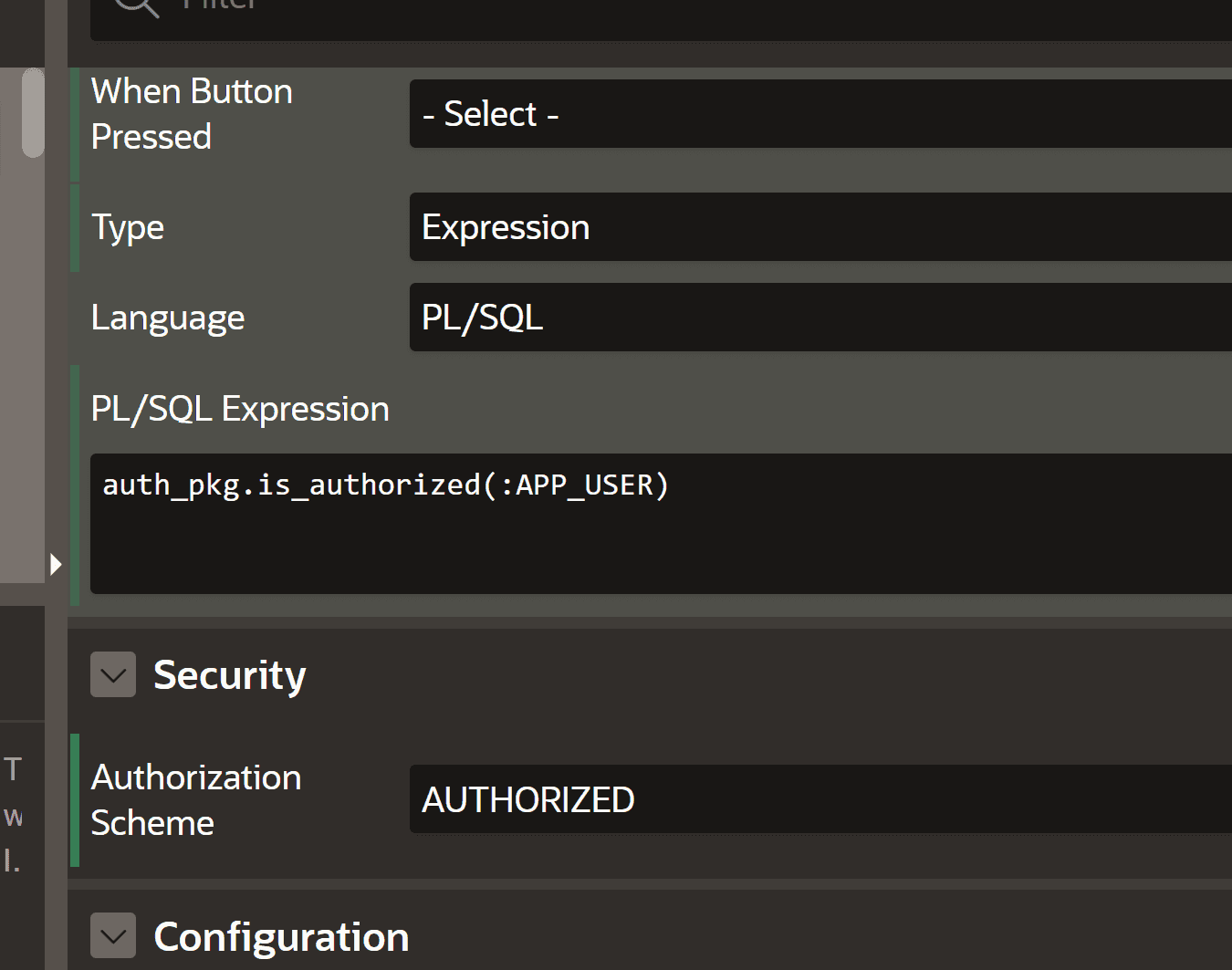

server-side-condition and authorization schemes on buttons

Use read-only on items to prevent session state altering

All APEX items have a read-only setting where we can define a server-side-condition. This setting is also available on whole regions and the page. Using this will cause the corresponding items to not be displayed as input fields but as just readable text. This has also the effect that the state of these values is protected and can’t be changed by the user.

If we have a form page that does not have a read-only condition and only the save button is hidden, the user can just enter new values and overwrite the database values by the JS call described on top.

When the items are in a read-only state and the user tries to alter them with JS and submits he will get an error claiming that a session state protection was violated. So you’re double safe if you secure the processes and use the read-only options.

$s('P13_SAL', 123);
apex.submit({ request: 'SAVE' });

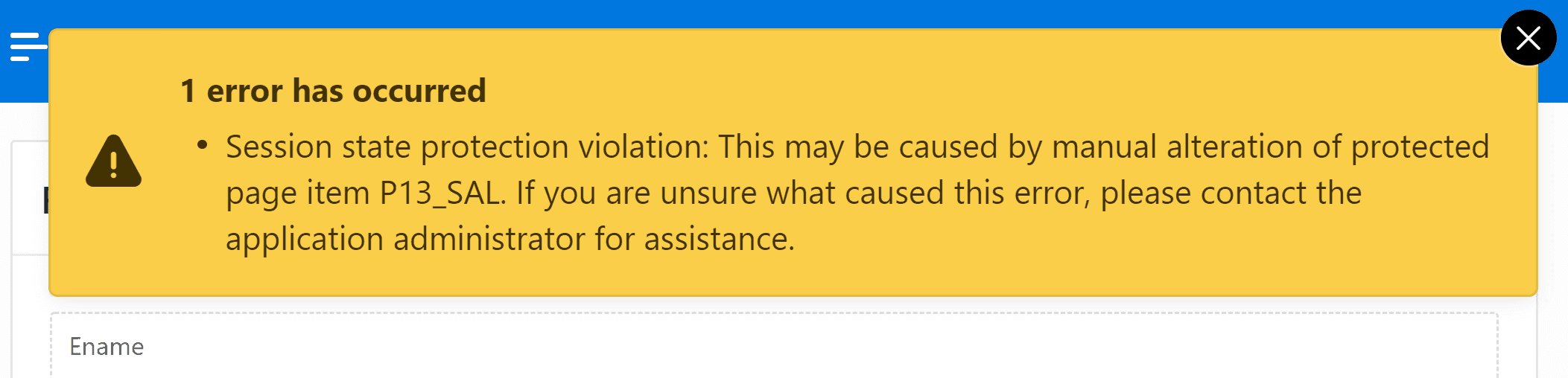

session state violation alert

Validation option on apex.submit

The function apex.submit also has a parameter for validations. I thought that maybe you can use that in an unintended way and skip validations.

apex.submit({ request: 'SAVE', validate: false });

When creating a validation there is a setting called always execute that is disabled by default. Its description says: “Specify whether this validation is always executed. If set to On, this validation is always evaluated, irrespective of the Execute Validations setting defined against the button that submitted the page. If set to Off, this validation is only evaluated if the triggering button has an Execute Validations setting of On.”

Luckily that does not mean the validation parameter to apex.submit defines whether the validations are performed. The execute validations setting on buttons is enabled by default and seems to prevent the validation option of the JS call of apex.submit on a server-side level. Only after disabling it the JS validation setting is used. So by default, the validate option is ignored by the database.

Conclusion

Always make sure to set authorization schemes and server-side-conditions on Oracle APEX processes where needed. Conditional buttons are still useful but only serve the UI. Where possible also use the read-only options, otherwise the item state could be altered.
